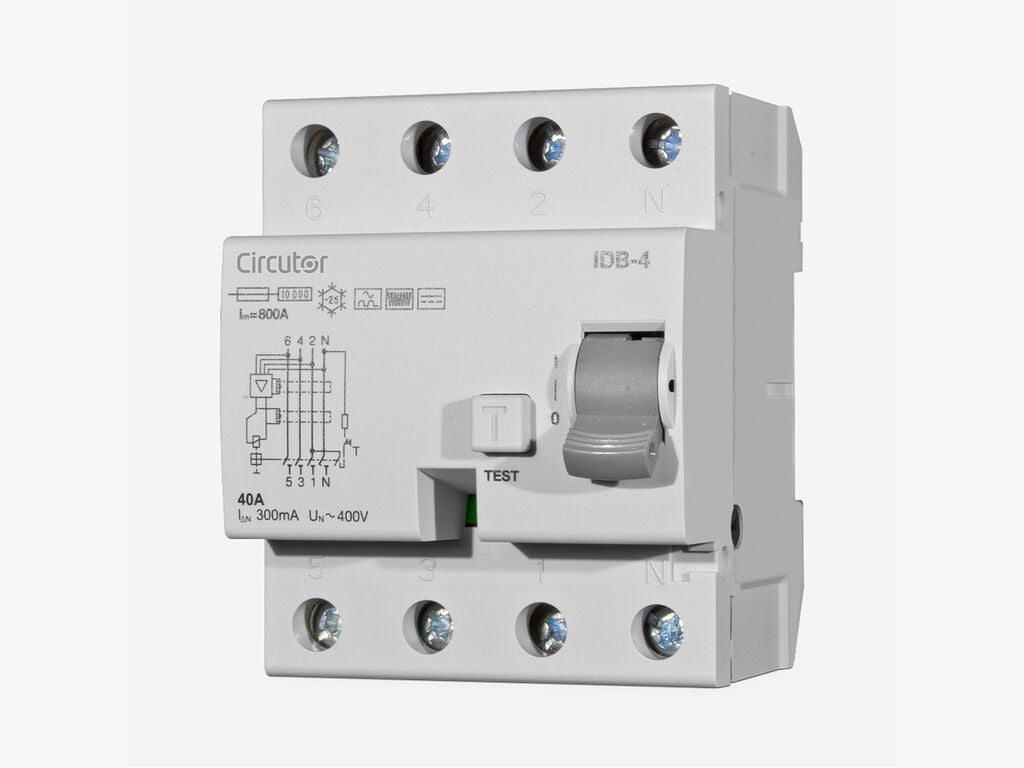

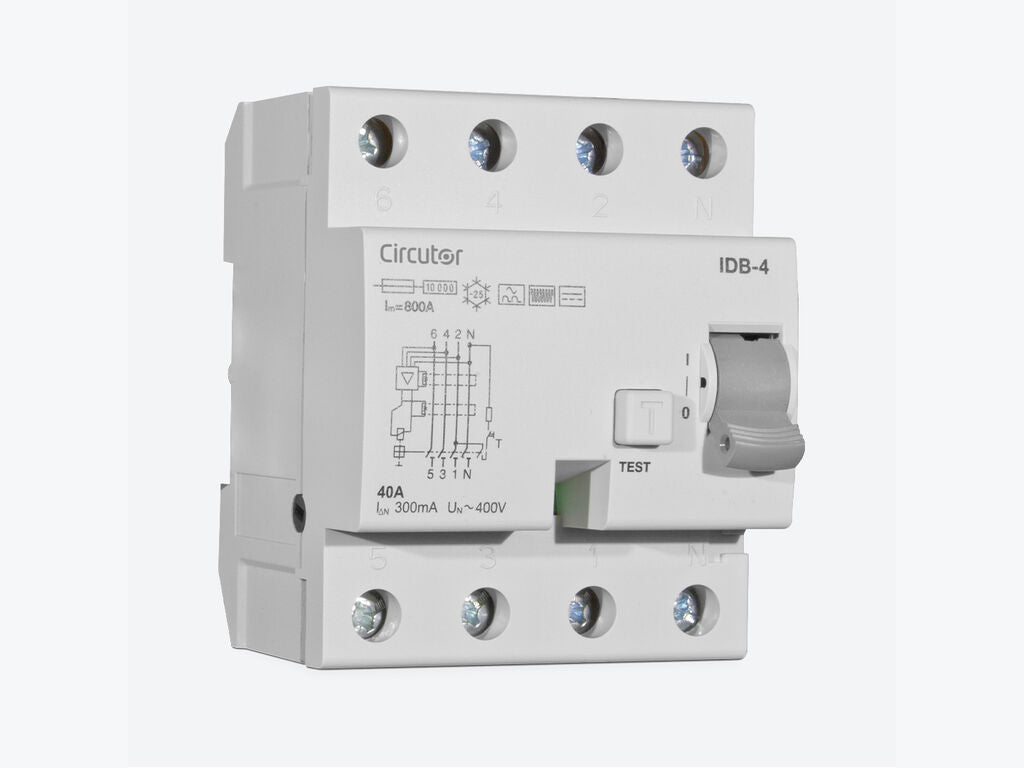

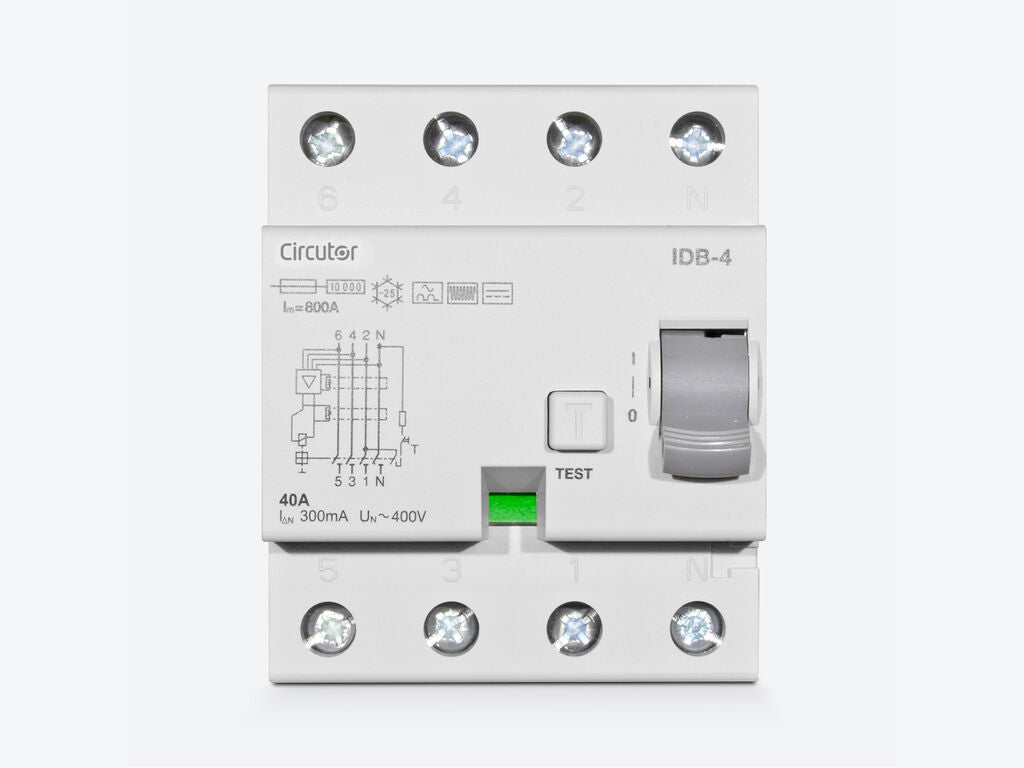

IDB-4 Single-Phase and Three-Phase Circutor Differential Type B/AC30mA/DC6mA

The best differential protection to protect your installation against direct current leaks when charging electric vehicles.

Description

Differential protection device for the protection of people and property against fault currents of the following types:
— Continuous residual sinusoidal and pulsating alternating currents.
— Sinusoidal alternating currents of up to 1 kHz.
— Direct currents.
For installations of up to 40 or 63 A and sensitivity of 30 mA.
Instant action.

applications

All electrical installations where process continuity is critical and immediate non-adjustable protections for people (30 mA) are required.
For example:
— Computer systems (SAI)
— Speed ​​variators
— Photovoltaic installations
— Electric vehicle charging systems

Technical characteristics

Differential protection Class B (IEC 60755, IEC 62423)
Sensitivity, IΔn 30 mA
Caliber, In 40/63 A
Trigger delay, tΔ Instantaneous or General (IEC 61008-1)

Electrical Characteristics

Operating voltage 230 / 400 Vac 50/60 Hz
Assigned differential cutting and cutting power IΔm: 10 kA
Assigned differential cutting and cutting power Im: 800 A

Mechanical characteristics

DIN 46277 (EN 50022) Rail Fixing
Dimensions 4 modules (70 mm)
Weight 425 g
Degree of protection Terminals IP 20, transfer. IP frame 41
Terminal dimensions 1-2.5 mm2
Mechanical life 4000 maneuvers
Electrical life 2000 maneuvers
Working conditions Temperature -25…+55 ºC
Relative humidity 95% non-condensing
Maximum altitude 2000 m
Safety Insulation Category III Class II EN 61010-1
4 kV shock wave
Standards IEC 61008, IEC 62423, IEC 61008.1.2
