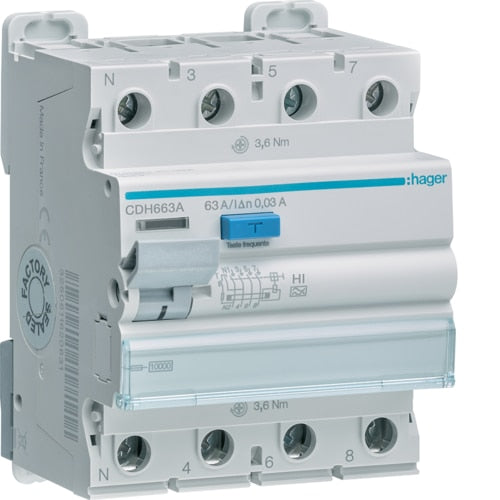

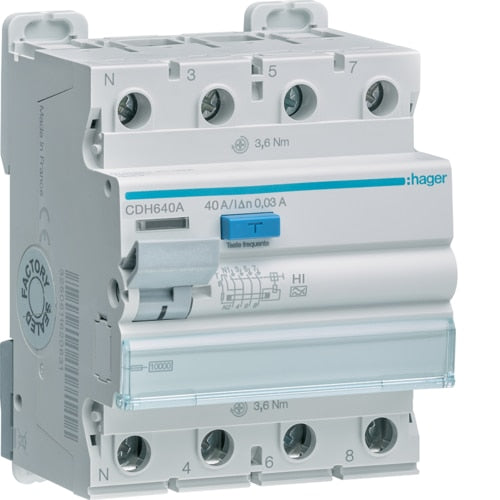

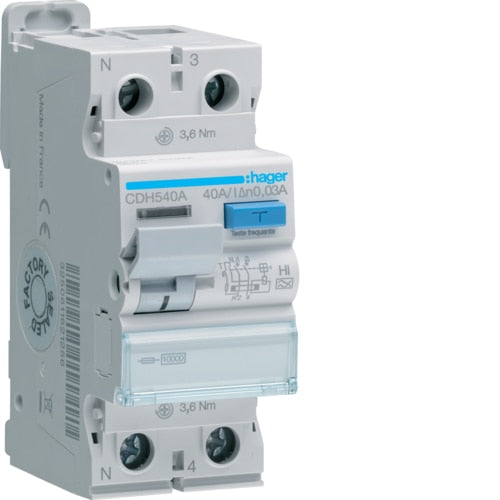

Hyper Immunized differential protection for protection during charging of electric vehicles.
Recommended for protecting charging stations with DC leak detection.
Description
HI type differential switches are suitable for electrical equipment that contains devices capable of producing fault currents with a direct component.
HI (Hyper Immunized): These are devices that have ''reinforced immunity'', reducing untimely shooting situations, protecting equipment that generates disturbances (micro computer, electronic ballasts,...)
Technical characteristics
Architecture
Neutral position Left No. of 2P/4P poles Pole type 1P+N/3P+N DIN rail fixing mode
Connectivity
Alignment of the lower terminals for modular devices Aligned terminals Alignment of the upper terminals for modular devices Aligned terminal
Mainelectrical characteristics
Operating frequency 50 Hz AC supply voltage type Stipulated alternating voltage for use 230 V
Voltage
Stipulated insulation voltage 500 V Maximum operating voltage 253 V Stipulated shock resistance voltage 4000 V
Electriccurrent
Differential sensitivity 30 mA Shock wave resistance 5 kA Closing and cutting power 1250 A Conditional short circuit current assigned Inc according to EN 61008-1
The first impression was that the box appeared well built and rugged enough to do the job. The only tricky bit was getting the plug to go fully into the box. I turned the box over with the plug on a table and pushed the box onto the plug with a reassuring click. Charged the car with no problems. A bit pricey... but does the job.
