AC Portable Charger V2C 6A-32A T2 Three-Phase (22 kW) w/ CEE32 Connector
AC Portable Charger V2C 6A-32A T2 Three-Phase (22 kW) w/ CEE32 Connector
Couldn't load pickup availability

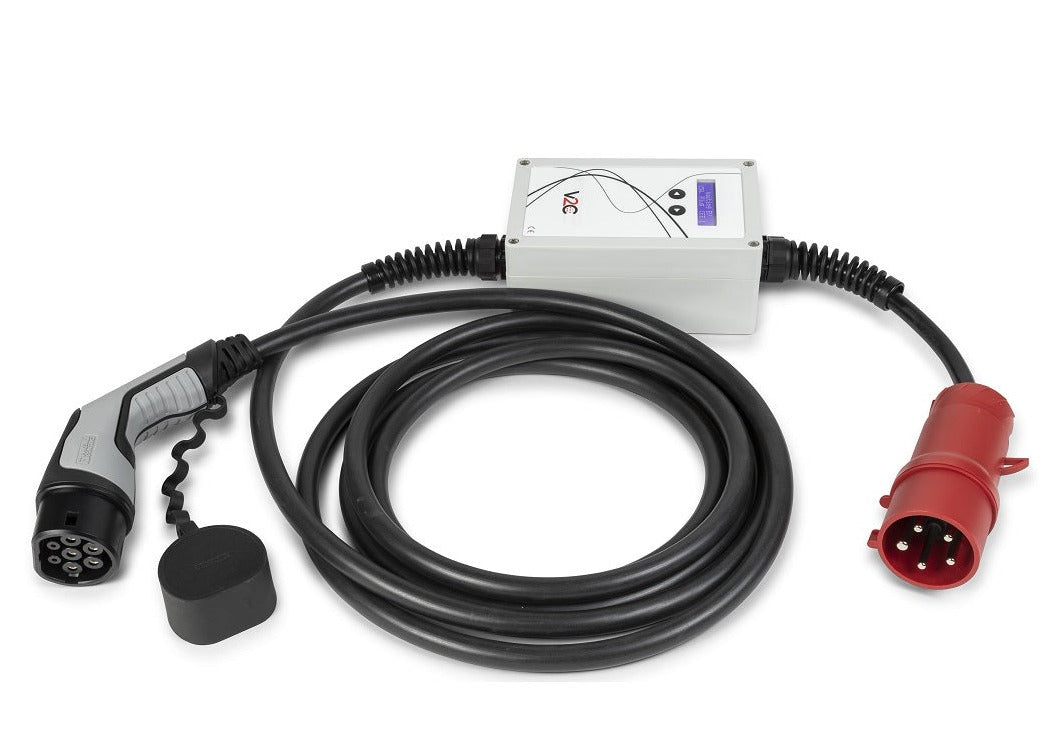

Portable Electric Vehicle Charger and Single-Phase Plug-In Hybrids with CEE32 Three-Phase / Type2 Plug (Mennekes)
This portable charger with 5 meter cable is compatible with all vehicles equipped with a Type2 socket (Mennekes), allows you to connect to a three-phase CEE32 socket, or via adapters, and charge your vehicle between 6A and 32A.
Characteristics:

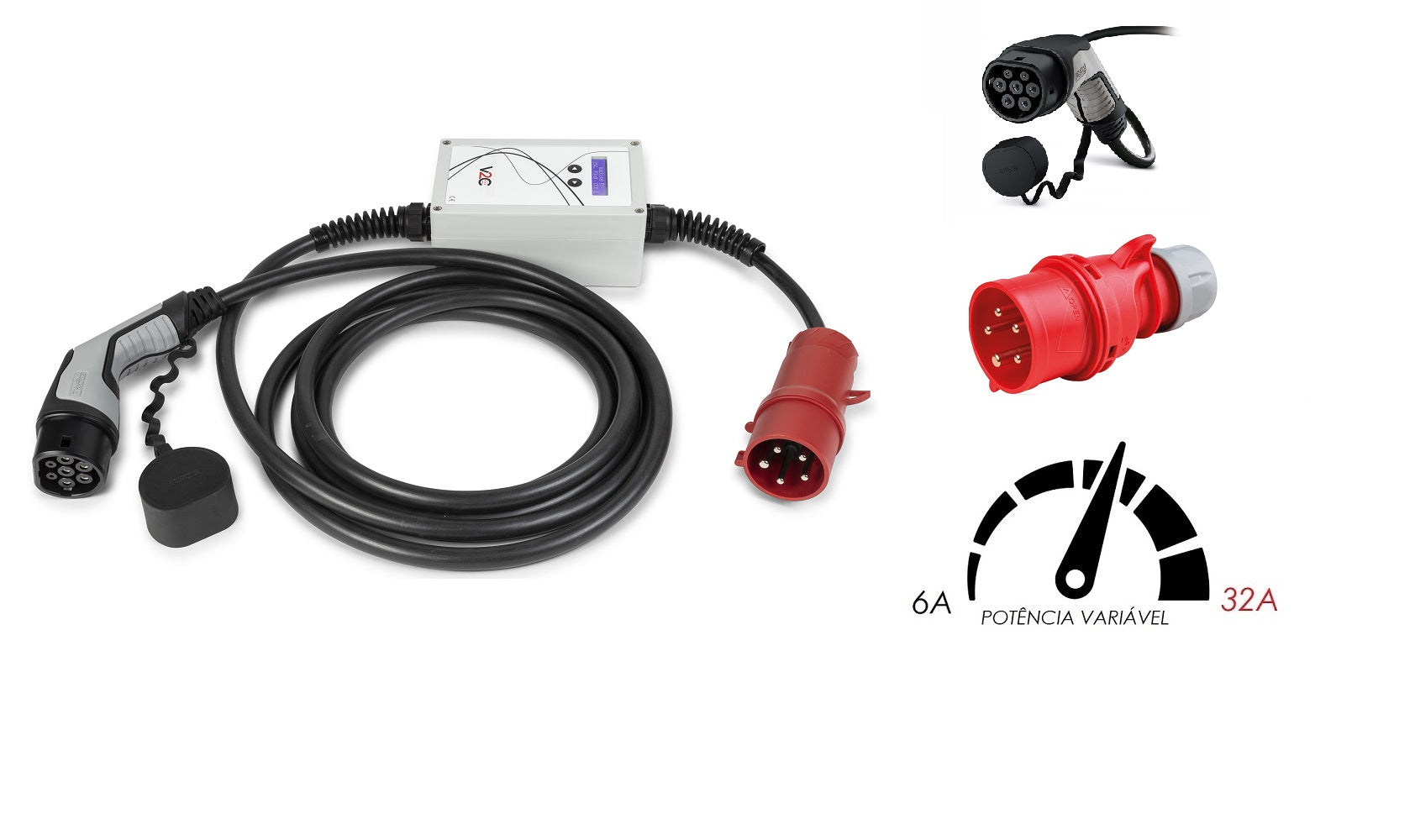

Adjustable power between 6A (1.38kW) and 32A (22kW).
Digital display to check the chosen power.
General Specifications:
5m cable with type2 connector (Mennekes)

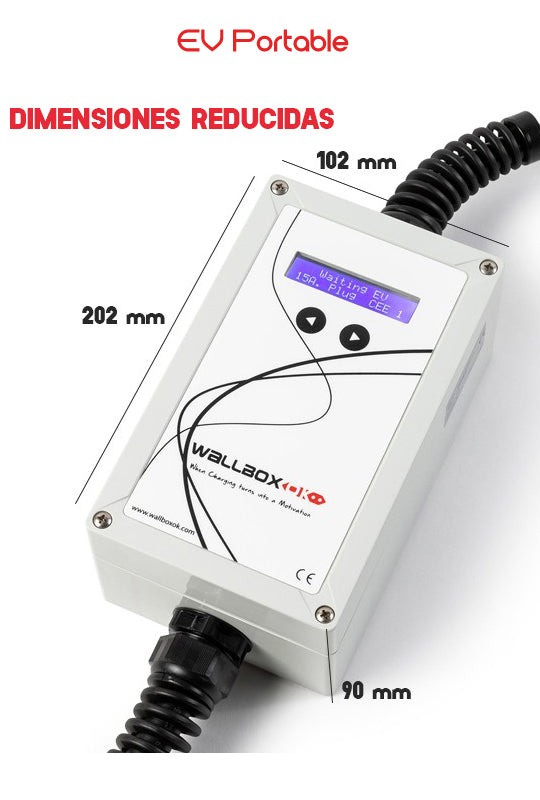

Box size 202x122x90 mm
Weight of 3.5kg
CE: IEC61851-1 / IEC61851-22
Electrical Specifications:
Charging Protocol: IEC 61851-2(Mode 2)
Maximum power (22 kW), Input voltage (230V/400V), Configurable current (6 to 32A), Three-phase connection.

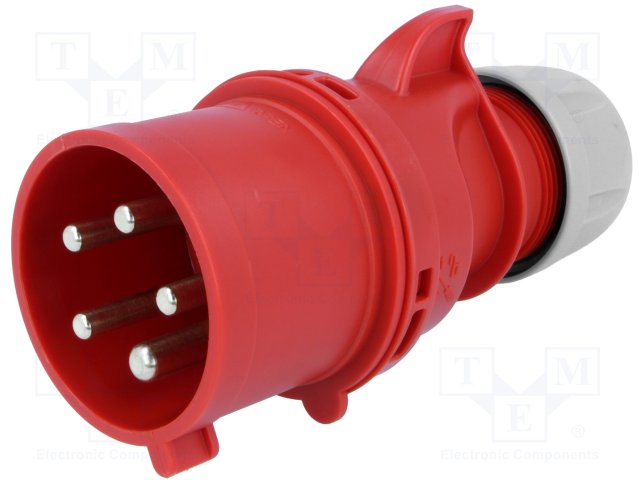

Input connector: CEE32 (1F+N+T)

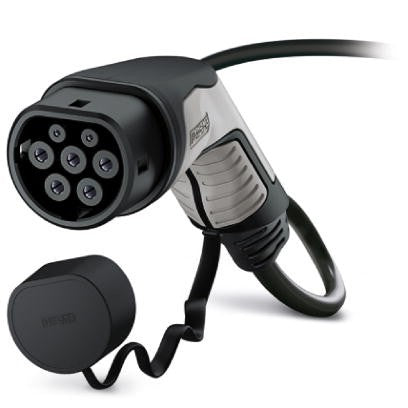

Output Connector: Type2 (Mennekes)
Protection: IP54 / IK10
Please ensure you only charge from a correctly installed blue CEE (single phase) connector, certified to supply 32A, installed with minimum 6mm² wires and protected with type A-EV or B differential protection.
